Tendon-Driven Robotic Hand — A Vision-Teleoperated MuJoCo Digital Twin

Mulham Fetna
Author
Mulham Fetna
Renaissance Engineer
Table of Contents
GitHub Repository Thumbnail
mulhamfetna/ros2-tendon-driven-hand-mujoco-digital-twin-vision-teleoperation

Vision-teleoperated MuJoCo digital twin of a tendon-driven robotic hand: MediaPipe finger tracking → tendon forces, as two ROS 2 Jazzy Docker services

Python
0
0
Hold your hand up to a webcam and a physics-simulated robotic hand — five strings, fifteen passive knuckles, designed in CAD — closes its fingers when you close yours.
Live teleoperation: MediaPipe landmarks on the operator’s hand (left) and the MuJoCo tendon-driven twin mirroring it (right)
Recorded live from docker compose up: webcam + MediaPipe landmarks on the left, the MuJoCo digital twin on the right.

This is the successor to my ROS 2 MediaPipe robotic hand. That project animated a 15-DOF hand by setting joint angles in RViz. This one takes the harder, more physical route: the hand is tendon-driven and underactuated, like most 3D-printed and many research hands. Each finger has one flexor string pulled from the palm, and MuJoCo decides how that single pull curls three passive joints.

MediaPipe Hands
MuJoCo 3.13 spatial tendons
ROS 2 Jazzy in Docker Compose
Onshape → MJCF
AGPL-3.0 · Zenodo DOI

The code is open under AGPL-3.0 and DOI-archived (10.5281/zenodo.22775694), the Onshape assembly is public, and every number in the series below was measured on the repository.

Get the code on GitHub Run it in 10 minutes

The pipeline
#

flowchart TB
    subgraph V["🐳 vision_tracker"]
        direction LR
        A["📷 Webcam"] --> B["MediaPipe Hands
21 landmarks"]
        B --> C["3 knuckle angles
per finger → mean"]
        C --> D["Flexion
0.0 open · 1.0 closed"]
    end
    subgraph T["🐳 mujoco_twin"]
        direction LR
        E["Lerp → ±50 N"] --> F["Tendon motor
pull_{finger}"]
        F --> G["Spatial tendon
through 6 sites"]
        G --> H["🖐️ MuJoCo viewer"]
    end
    D -- "ROS 2 · /hand/target_flexions
sensor_msgs/JointState" --> E

Two containers share the host network (DDS discovery, visible across the LAN) and the host’s shared memory (Fast DDS moves messages through /dev/shm). The code is bind-mounted, not baked into the images, so an edit is a docker compose restart away.

From CAD… …to a simulated tendon routing

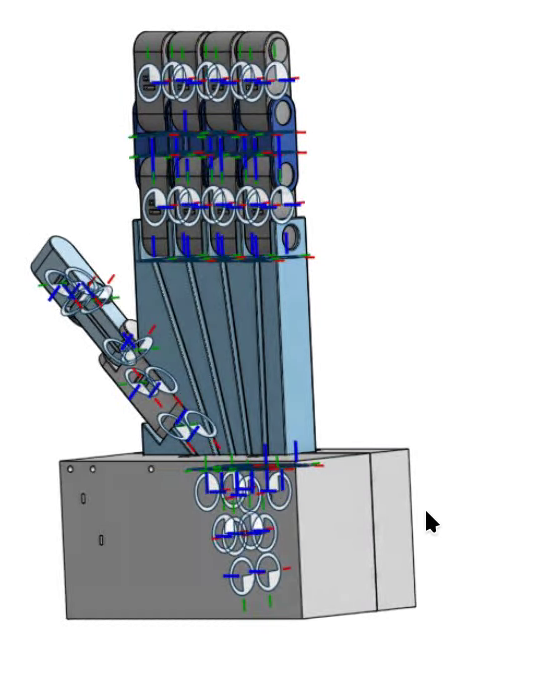

The current Onshape assembly: fingers, thumb, palm tendon channels and servo base

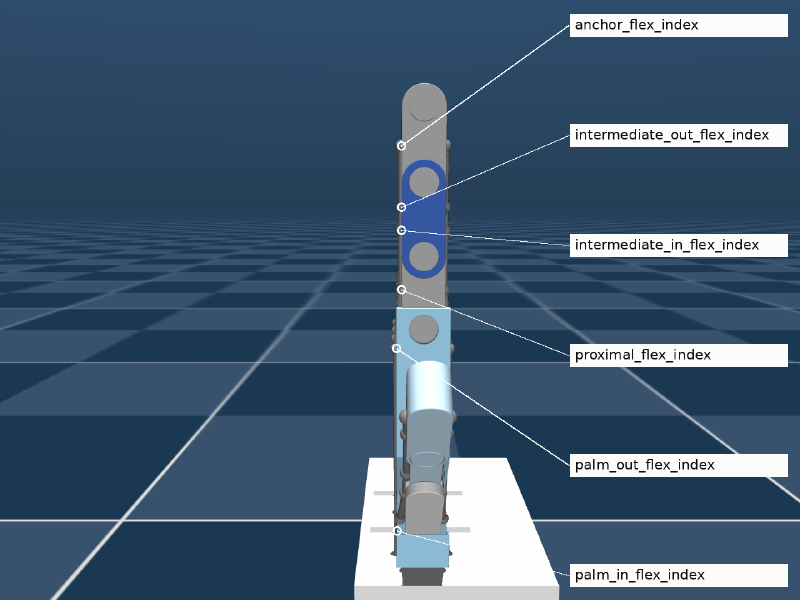

The index finger flexor tendon threaded through six labelled via-point sites in MuJoCo

Watch it
#

What the measurements showed
#

Building the documentation meant measuring the system instead of describing it. Three results stood out, and each gets its own article:

The simulated fingers are switches. With force control and zero joint stiffness, −1 N of tendon pull closes a finger to its 90° stop — 1% of the ±50 N command range. Position control on tendon length gives a smooth curl instead. → Part 11

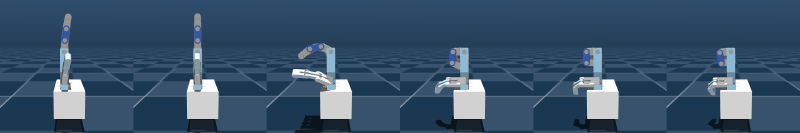

Filmstrip of the simulated hand at flexion 0.0, 0.5, 0.505, 0.51, 0.52 and 1.0 — only 0.505 shows a partial curl
Flexion 0.0 · 0.5 · 0.505 · 0.51 · 0.52 · 1.0. The whole proportional range fits between 0.50 and 0.51.
Image-normalized MediaPipe landmarks bend angles. A true 90° bend reads 73.7° when rotated 45° in a 640×480 frame, because x and y are divided by different image dimensions. World landmarks fix it. → Part 4
Docker costs nothing; a second OpenGL window does. MediaPipe takes 19.0 ms per frame in the container and 19.2 ms on the host — but 55–86 ms whenever a MuJoCo viewer renders at the same time, with or without Docker. → Part 19
Peace sign OK sign

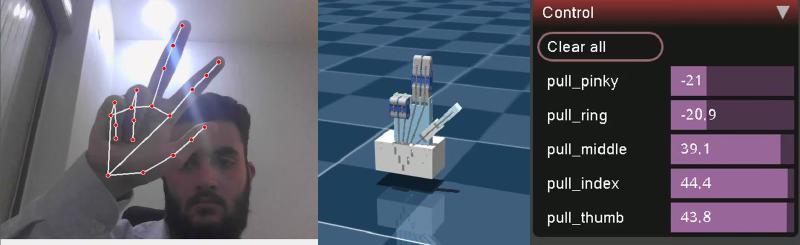

Peace sign: ring and pinky tendons pulled at −21 N, index, middle and thumb pushed open

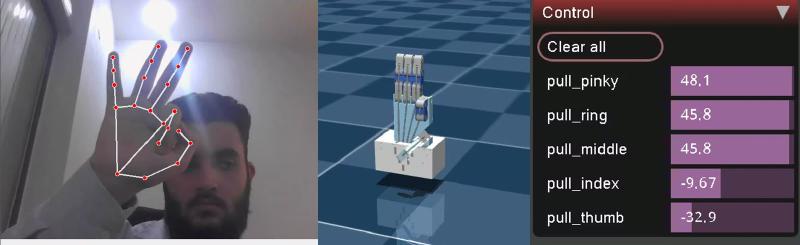

OK sign: thumb pulled at −32.9 N and index at −9.7 N, other fingers open

Each frame shows all three layers at once: tracked hand, simulated hand, and the live tendon forces.

The 20-part series
#

Written as a tutorial you can follow end to end, or dip into by layer. Each part is self-contained and links to the exact files in the repository.

Getting started
#

  1. Run the tendon-driven hand digital twin — Docker Compose, a single Python script, the twin alone, or the model viewer.
  2. How a webcam moves a simulated tendon-driven hand — the whole system on one page. Start here if you only read one.
  3. Troubleshooting and FAQ — every error hit while building it, and the fix.

Vision — pixels to finger flexion
#

  1. MediaPipe Hands and the 16° angle trap — the two-stage model, 21 landmarks, and what the coordinates really mean.
  2. Joint angles from three landmarks — dot-product geometry and its two numerical traps.
  3. Why three knuckles become one number — underactuation, and what averaging throws away.
  4. Normalizing finger curl — the inverted min-max formula and where its constants come from.
  5. Why the thumb gets its own thresholds — a saddle joint, a narrow window, and its trade-off.
  6. Calibrating hand tracking to your hand — a procedure, and real flexions from a live session.

Actuation — flexion to finger motion
#

  1. From finger flexion to tendon force — linear interpolation, actuator lookup, and a string that pushes.
  2. Why the simulated finger is a switch — the measurement, the force balance, and three tested fixes.

Model — Onshape CAD to MuJoCo
#

  1. From an Onshape assembly to MuJoCo — the current design, onshape-to-robot, and config.json.
  2. The manual MJCF edits behind a tendon hand — tendons, the “horn hack”, contacts that never happen, and motors.
  3. Inside the MuJoCo tendon hand model — kinematic tree, joint sign conventions, site naming.

ROS 2 and containers
#

  1. The ROS 2 topic contract — one topic, two nodes, and pumping rclpy inside a render loop.
  2. Docker Compose architecture for ROS 2 — dependency-only images and mounted code.
  3. Shared network and shared memory in Docker — DDS discovery, domain IDs, LAN visibility, and Fast DDS SHM across containers.
  4. GUI, webcam and GPU passthrough — X11 on Wayland, /dev/dri, /dev/video0, and the cost of privileged.

Performance and production
#

  1. What limits the frame rate — a benchmark, what it ruled out, and the leading hypothesis.
  2. Roadmap to production — correctness, robustness, maintainability, real servos, deployment.

What it does not do (yet)
#

  • Partial poses. The twin mirrors open and closed fingers, not a half-curl — see Part 11 and issue #1.
  • Hardware. It simulates commands; the SG90 servos in the CAD are not driven yet (Part 20).
  • Self-collision. No geom pair in the model ever produces a contact (Part 13).
  • Smoothing. Landmark jitter passes straight through to the tendon forces.

Frequently asked questions
#

What is the tendon-driven robotic hand digital twin?
An open-source project by Mulham Fetna in which a standard RGB webcam and Google MediaPipe Hands track a person’s hand, and a MuJoCo physics simulation of an underactuated, tendon-driven robotic hand mirrors it in real time. Vision and simulation run as two ROS 2 Jazzy Docker containers that exchange five finger-flexion values over the topic /hand/target_flexions. The code is AGPL-3.0 licensed and archived on Zenodo under DOI 10.5281/zenodo.22775694.
How is a tendon-driven hand simulated in MuJoCo?
In this project each finger has a MuJoCo spatial tendon routed through six named sites from the palm to the fingertip, and a motor actuator applies a force along that tendon. The three finger joints are passive hinges, so MuJoCo’s solver decides how one tendon pull curls all three. The measured consequence is that with zero joint stiffness about −1 N of pull closes a finger fully, so position control of tendon length is recommended for proportional motion.
Does the project need a depth camera, gloves, or a GPU?
No depth camera, gloves, or markers are needed — any RGB webcam works, because MediaPipe infers 3D hand landmarks from single 2D frames. MediaPipe runs on the CPU at about 19 ms per frame on a laptop; the MuJoCo viewer runs well on integrated Intel graphics.
How do two ROS 2 Docker containers share memory and network in this project?
Both services use Docker Compose network_mode host so DDS discovery over UDP multicast works between containers and across the LAN (ROS_DOMAIN_ID 42, discovery range SUBNET), and ipc host plus pid host so Fast DDS can pass messages through shared memory segments in /dev/shm instead of the network stack.
How do I cite the tendon-driven hand digital twin?
Cite the Zenodo concept DOI 10.5281/zenodo.22775694, which always resolves to the latest version: Fetna, Mulham Mohammed, “Tendon-Driven Robotic Hand: Vision-Teleoperated MuJoCo Digital Twin”, Zenodo. The GitHub repository also provides a CITATION.cff file.

Cite it
#

@software{fetna_tendon_hand_mujoco_twin,
  author    = {Fetna, Mulham Mohammed},
  title     = {{Tendon-Driven Robotic Hand: Vision-Teleoperated MuJoCo Digital Twin}},
  year      = {2026},
  publisher = {Zenodo},
  doi       = {10.5281/zenodo.22775694},
  url       = {https://doi.org/10.5281/zenodo.22775694}
}
